1. Introduction, usage scenarios, and features of folding chairs

Seat introduction

The Gaobiao series rotating folding car seat is a seat that can quickly and easily provide space in the car when the user needs it. It can achieve a good balance between providing sufficient seats and quickly and conveniently obtaining space in the car. It is widely used in special vehicle modification, RV modification, camper modification, including wheelchair and other special vehicle modifications;

Applicable scenarios:

The seat can be unfolded and adjusted to a suitable angle to meet the seat needs. It can be folded back when not in use without affecting the activities in the car space.

● Applicable scenario 1: Trucks, trains

● Applicable scenario 2: RVs, campers, commercial vehicles

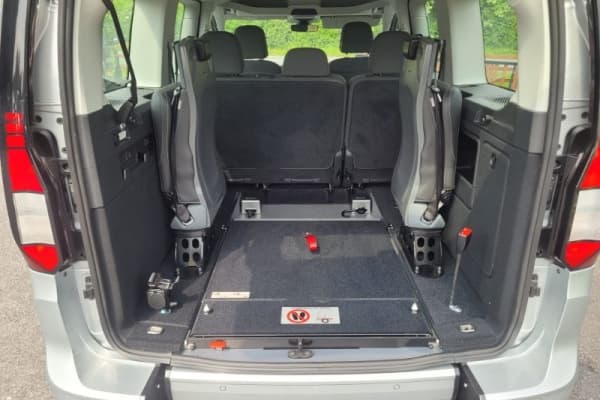

● Applicable scenario 3: Welfare vehicles, barrier-free vehicles, special vehicles

Product features or advantages:

1. Flexibility and Adaptability

It can be folded and unfolded according to passenger needs, providing a flexible riding experience. Whether it is a family trip, business reception or camping trip, it can meet the needs of passengers.

2. Space utilization: Folding seats are suitable for vehicles with passenger and cargo functions, such as MPVs, SUVs and camping cars, which improves the vehicle's carrying capacity.

3. Seat rotation

There are 7 levels of seat adjustment, the front 90 degrees are divided into 1 level, the rear 90 degrees are divided into 6 levels and each level is adjusted by 15 degrees.

2. Seats are suitable for car models

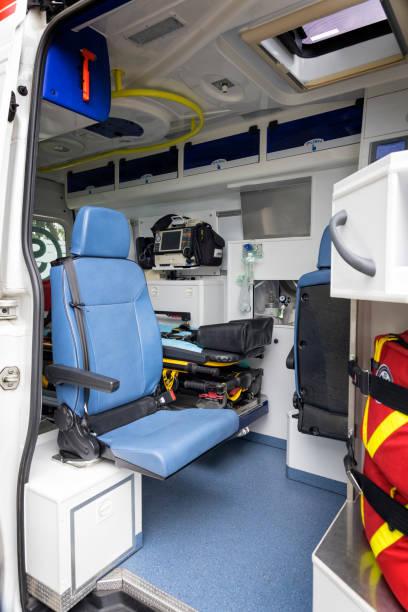

For example: ambulance, Mercedes-Benz Sprinter, Freeman, Toyota Sena, Ford Transit, Volkswagen Multivan, etc.

3. Functional operation instructions and videos

Operation instructions:

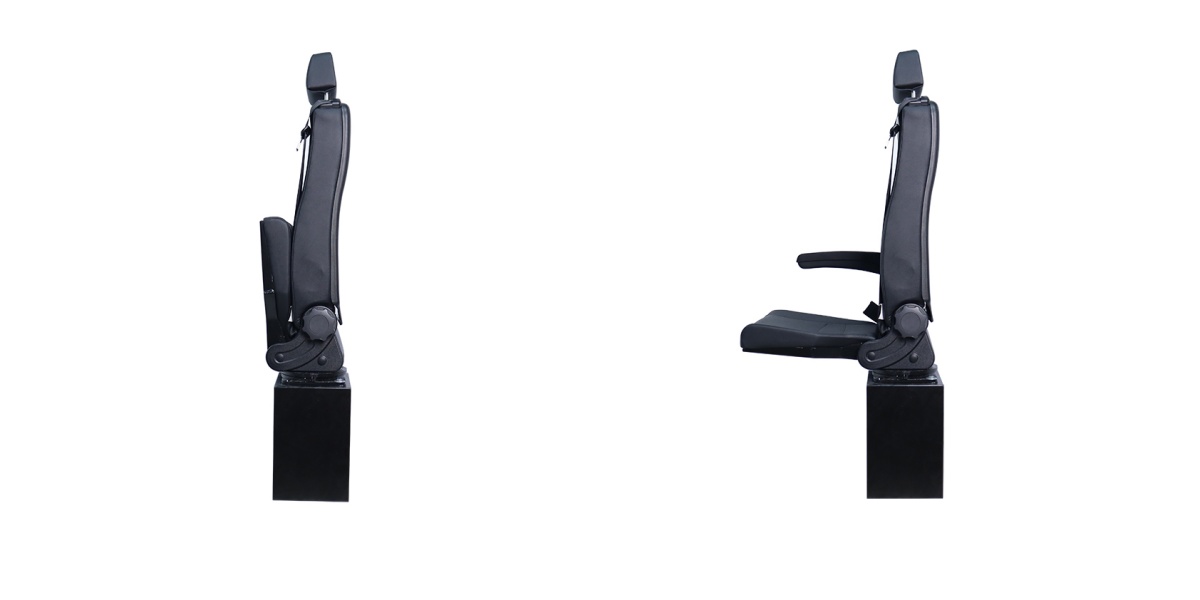

●As shown in the figure above, the seat can be folded and unfolded freely. Simply press down on the seat to unfold it, and fold it back in the opposite direction when retracting it.

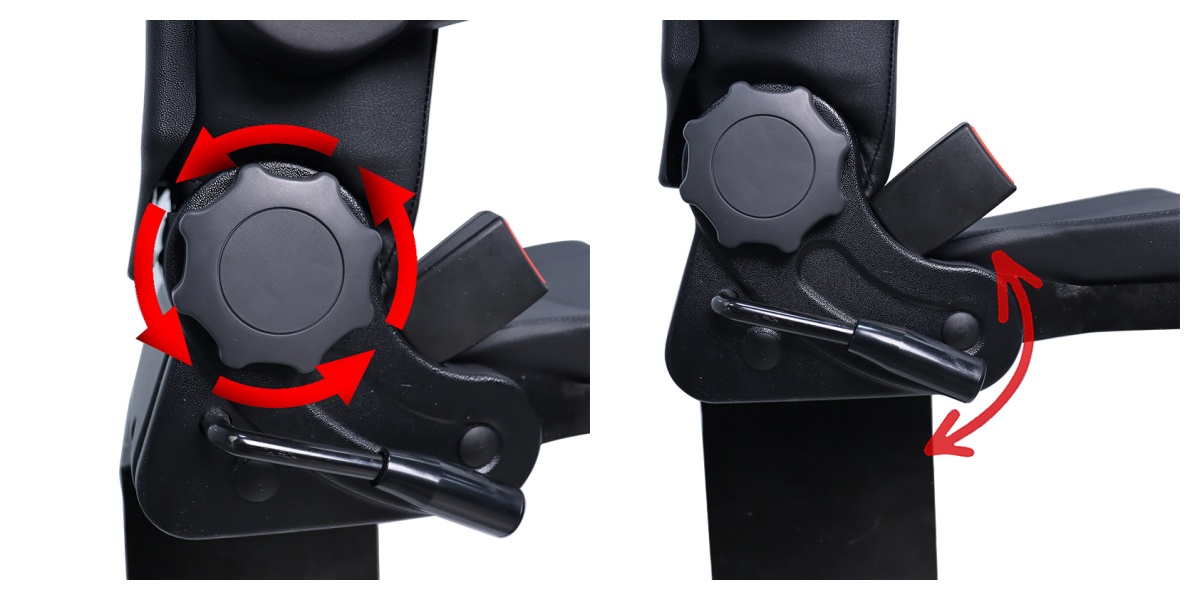

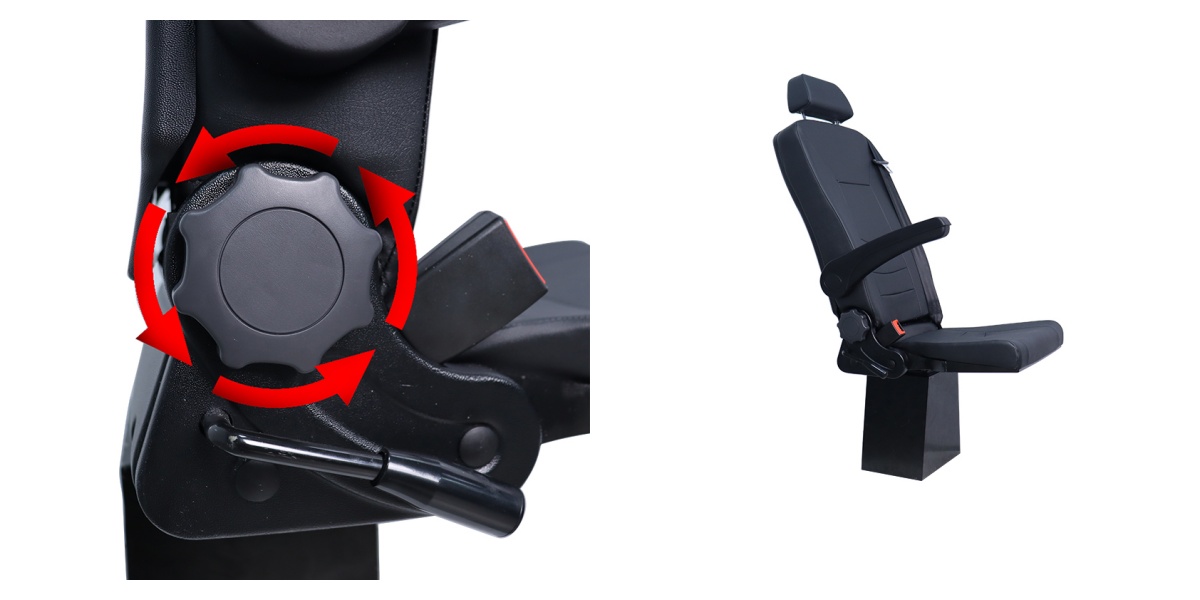

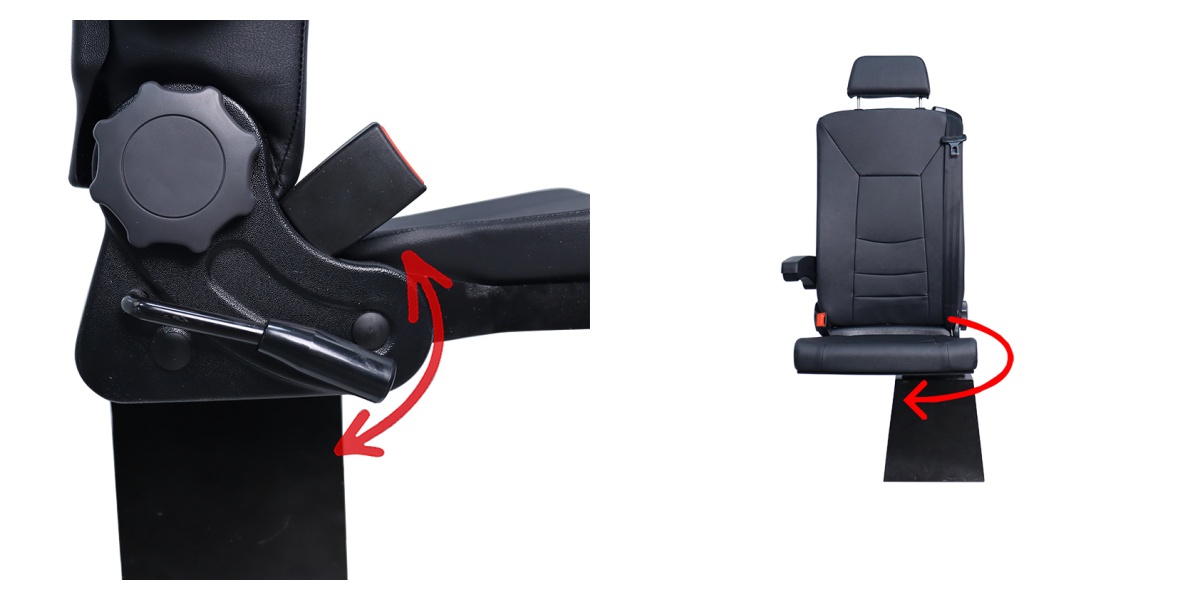

●As shown in the figure, turn the side knob counterclockwise to adjust the backrest angle downward, and vice versa, turn the knob clockwise to adjust the backrest angle upward

●As shown in the figure, pull the handle in Figure 1 upward to unlock the rotating mechanism, and then you can manually rotate the seat.

Operation video:

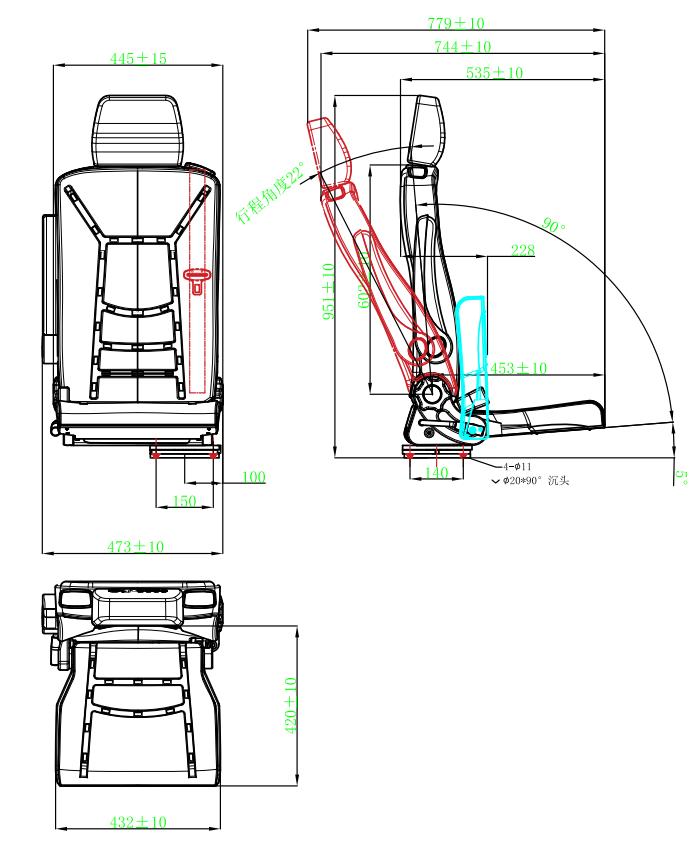

Details + dimensions

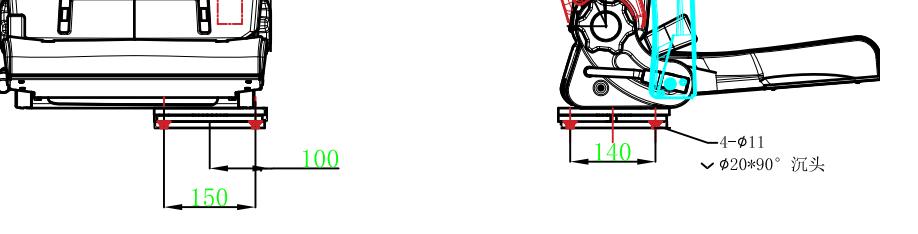

4. Seat installation hole dimension drawing

5. Folding chair assembly drawing

6.Personalized customization

●Leather color

●Leather material: PVC, PU, microfiber, genuine leather

●Quilted pattern

●Color-blocked leather

●Personalized LOGO

●Rotation gear angle

●Mounting bracket

●Optional seat belts: no seat belt, two-point seat belt, three-point seat belt

7. Cleaning and Maintenance

1. First, clean the seat with a vacuum cleaner to remove dust and large particles of dirt to avoid scratching the leather when cleaning later;

2. Spray evenly at a distance of 15-20 cm from the cleaning area, wait for the foam to act on the cleaning surface for 30 seconds, and then gently scrub with a soft brush;

3. Use a clean dry towel and then wipe the seat surface repeatedly to reduce the residual foam cleaning agent;

8. Shipping Packaging

Packaging size: 855*355*540mm (subject to the actual product)

Box weight: 28KG (subject to the actual product)

Put a plastic dust bag on the seat, use polystyrene foam for protection at the front and back, and use carton packaging for the outer packaging. Be careful to prevent water and drop during transportation.
