2 Seater RIB Bench Seat

bench folding seat
fold up bench seat
folding bench with back
fold bench seat
RIB seat

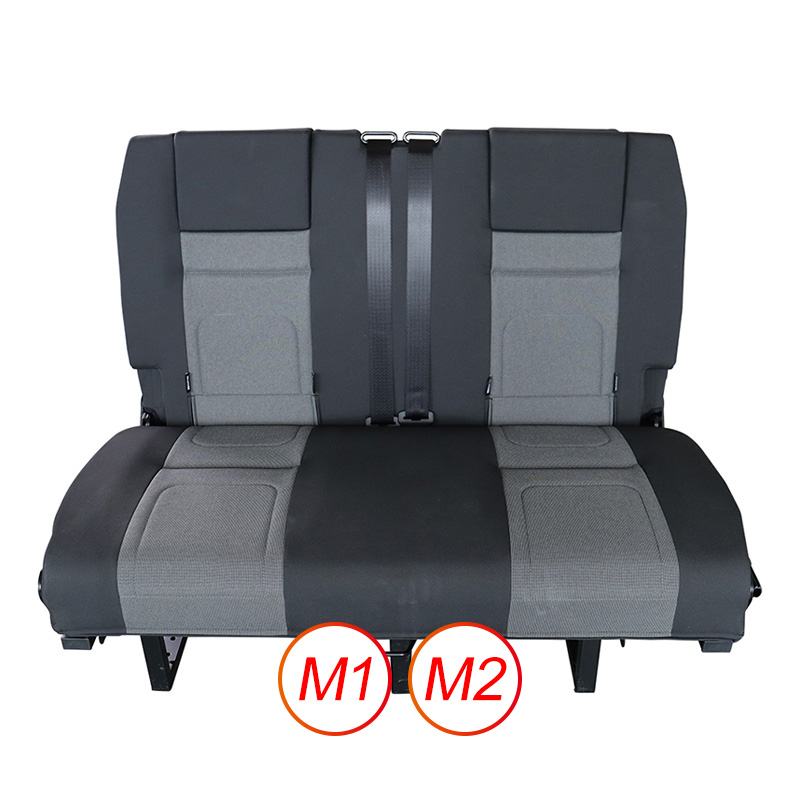

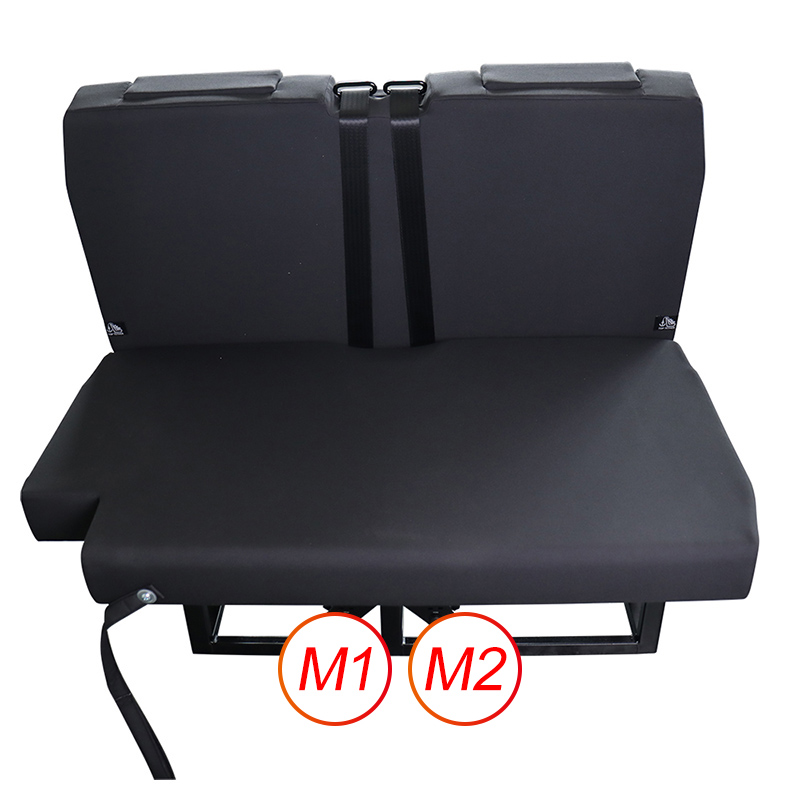

2 Seater RIB Bench Seat

RIB Bench Seat is a double rear seat that can be quickly converted into a bed when needed, and is widely used in RV and camper conversions.We are a professional folding van seat supplier and manufacturer, providing you with wholesale and customized solutions.



Unfolded size

1865*1144*541MM(73.5*45*21in)

Natural unfolded size

964*1144*1034MM(38*45*40.7in)

Packaging size

1270*1200*1130MM(50*47.2*44.5in )With wooden box

Material

Covering material: oxfordfabric

Sponge material: PUR cold foam

Frame material: Q235、Q440、Q590

Net weight

94.5kg (Actual weight is subject to the product)

Applicable models

General model, Mercedes-Benz Vito, Mercedes-Benz V-Class, Mercedes-Benz METTS, Iercedes-Benz Sprinter, Ford Transit, Volkswagen Transporter T5 T6, Renault laster, Peugeot Boxer, Citroén Jumper. Nissan NV200, Fiat Ducato, Toyota Proace, Iveco Daily, Toyota Alpha, GL8, Senna Toyota Hiace, etc.

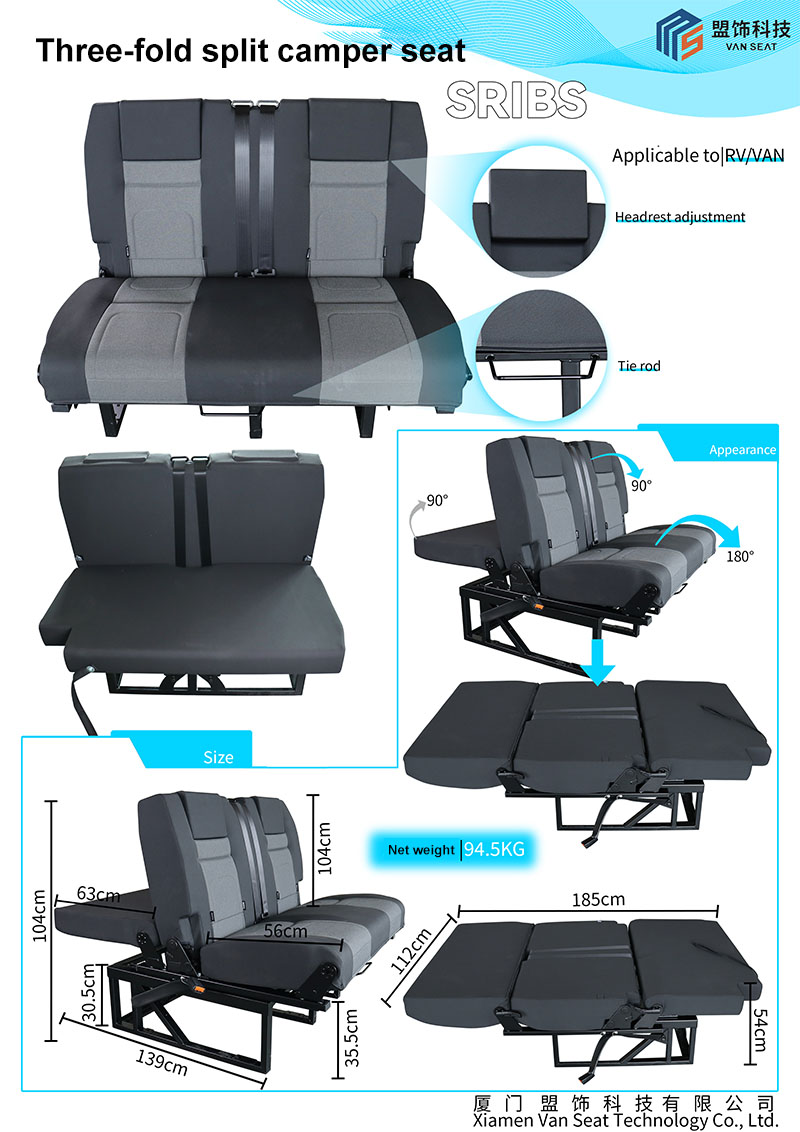

2 Seater RIB Bench Seat



RIB Bench Seat Introduction

RIB Bench Seat is a two-person rear seat that can be quickly transformed into a bed when the user needs it. Many RVs have adopted the design of sofa-to-bed conversion, that is, it is used as a sofa during the day and converted into a bed at night. This design not only saves space, but also improves the practicality of the RV. It is widely used in RV modification and camper modification;

Xiamen Van Seat RIB



RIB Bench Seat applicable scenarios

●RV/camper

At night or when you need to rest, it can provide passengers with high-quality sleep and a good rest environment.

●Business car

Usually used as a sofa chair, it is convenient for occasional friends to travel and take a ride. At night, the seat bed can be unfolded for use



RIB Bench Seat features

1. The seat adopts a classic structural design, which is simple to operate and install.

2. The seat headrest is hidden, and the seat can maintain flatness after being folded into a bed.

3. Customization supported: seat height, seat width, seat leather color, seat bracket



RIB Bench Seat applicable models

General model, Mercedes-Benz Vito, Mercedes-Benz V-Class, Mercedes-Benz METTS, Iercedes-Benz Sprinter, Ford Transit, Volkswagen Transporter T5 T6, Renault laster, Peugeot Boxer, Citroén Jumper. Nissan NV200, Fiat Ducato, Toyota Proace, Iveco Daily, Toyota Alpha, GL8, Senna Toyota Hiace, etc.

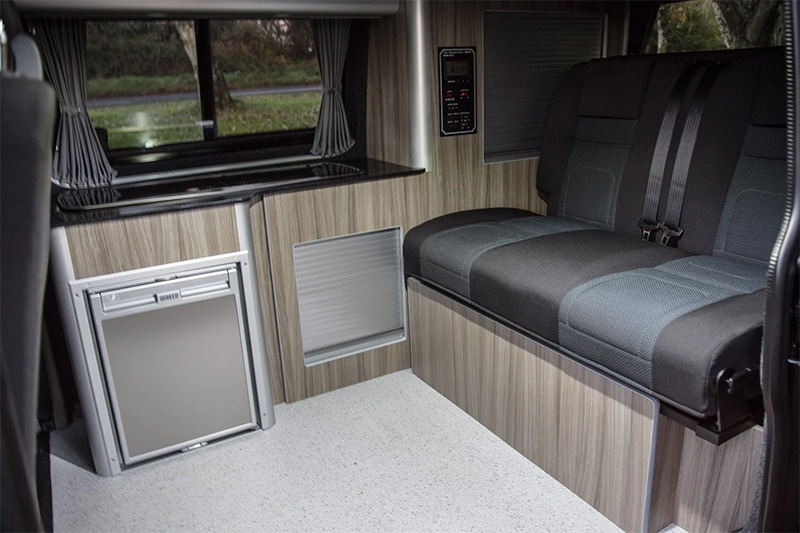

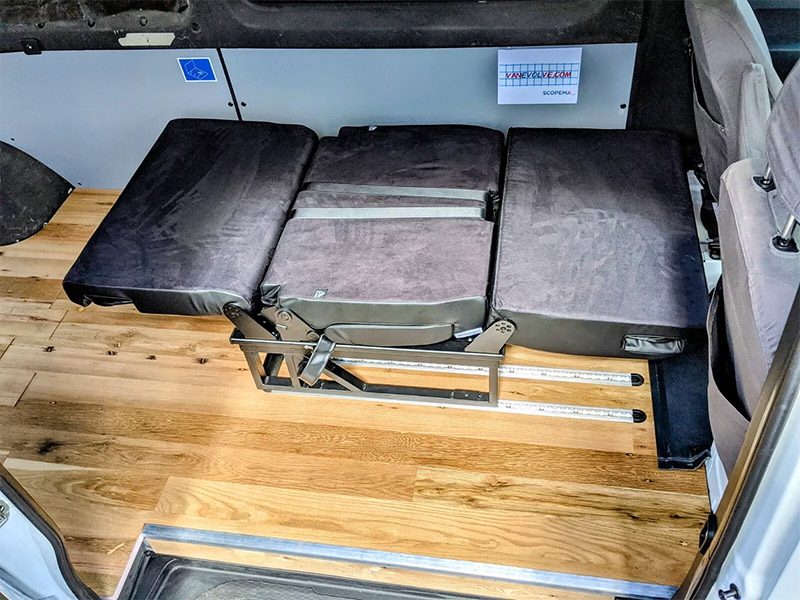

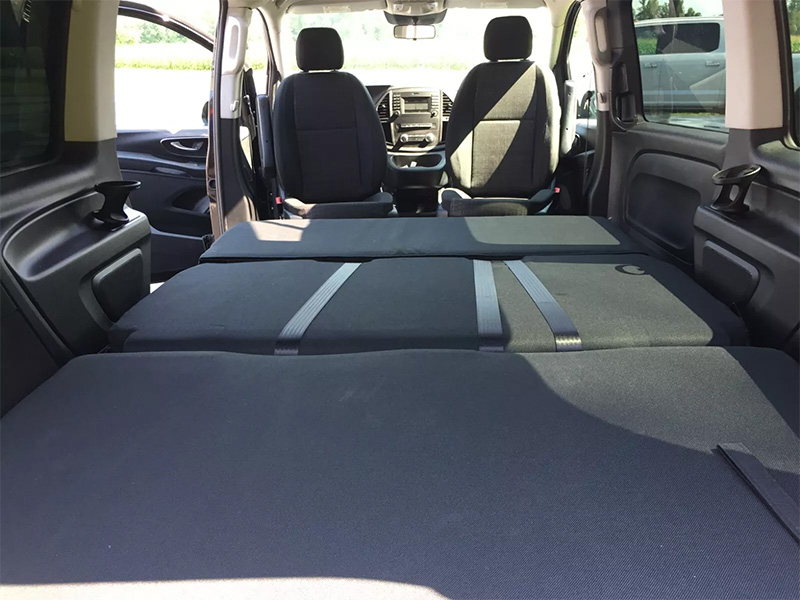

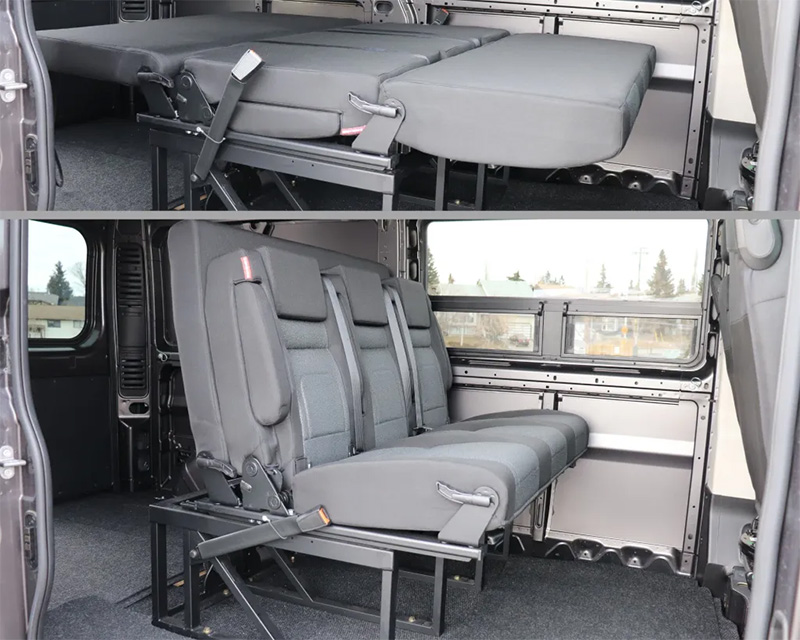

RIB Bench Seat installation effect diagram

  • RIB bed
  • RIB seat bed
  • RIB bench seat
  • factory RIB seat



RIB Bench Seat Usage Function Instructions and Video

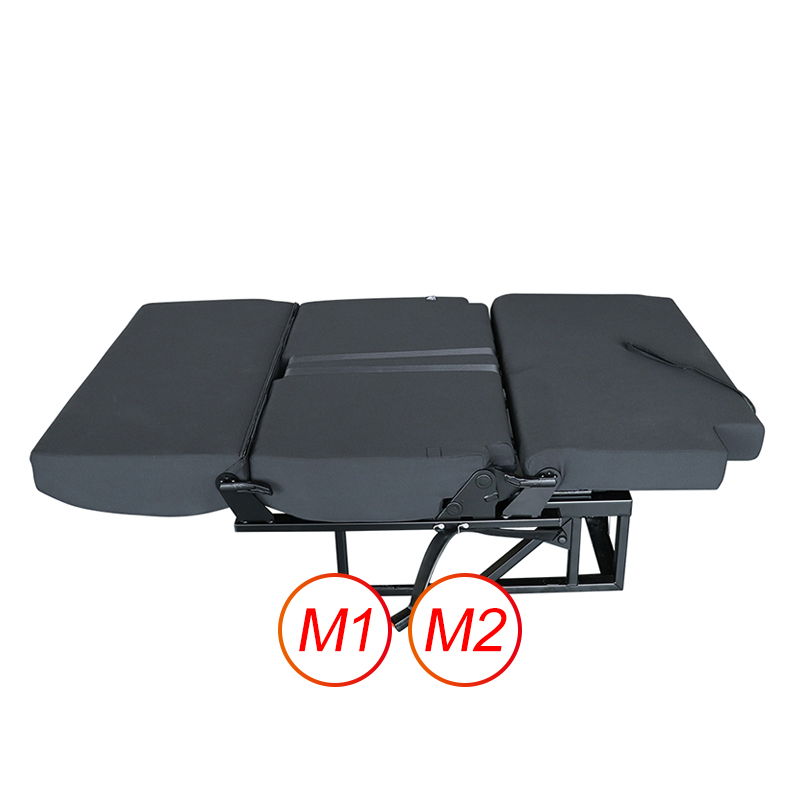

Seat Transformed into Bed

● Move the seat adjustment handle to flip the seat cushion forward to a horizontal position;

● Grasp the back adjustment lever under the back and lift it up to flip the seat back forward;

● Adjust the back plate wrench to lay the back plate flat backward.

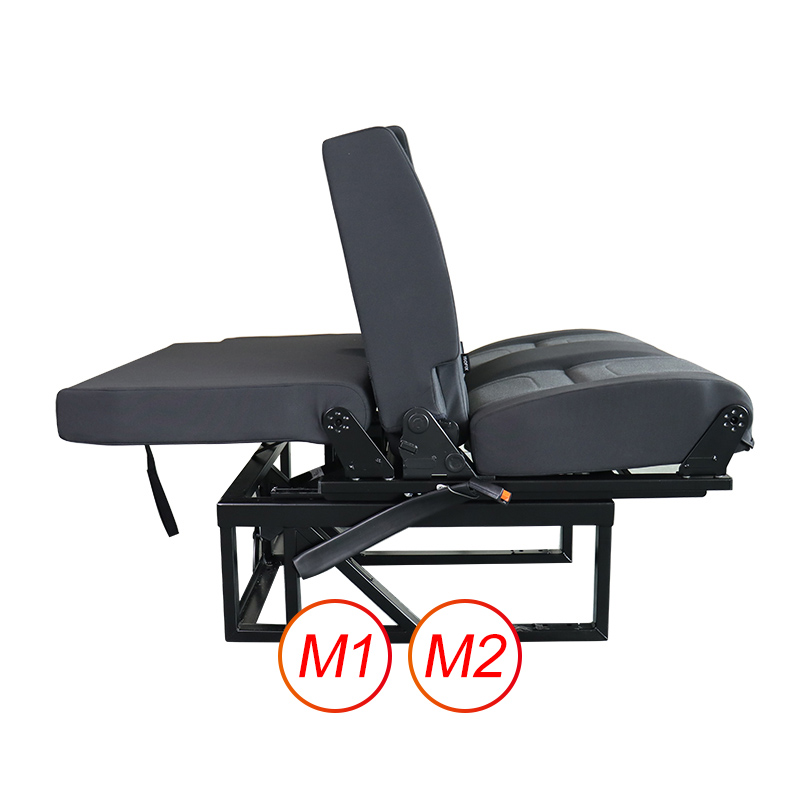

Bedside reclining chair mode

● Move the seat adjustment handle to continue to press down the seat cushion;

● Move the back plate adjustment handle to lift the tail plate upward to achieve the reclining function.

Seat Slides Forward and Rear

● Pull up the lever at the front end of the seat to move the seat forward and backward.

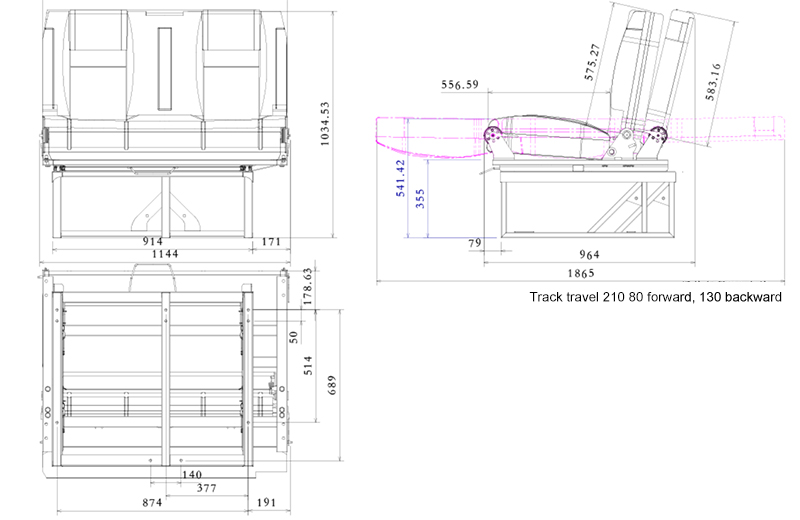

Details + Size



 folding van seat

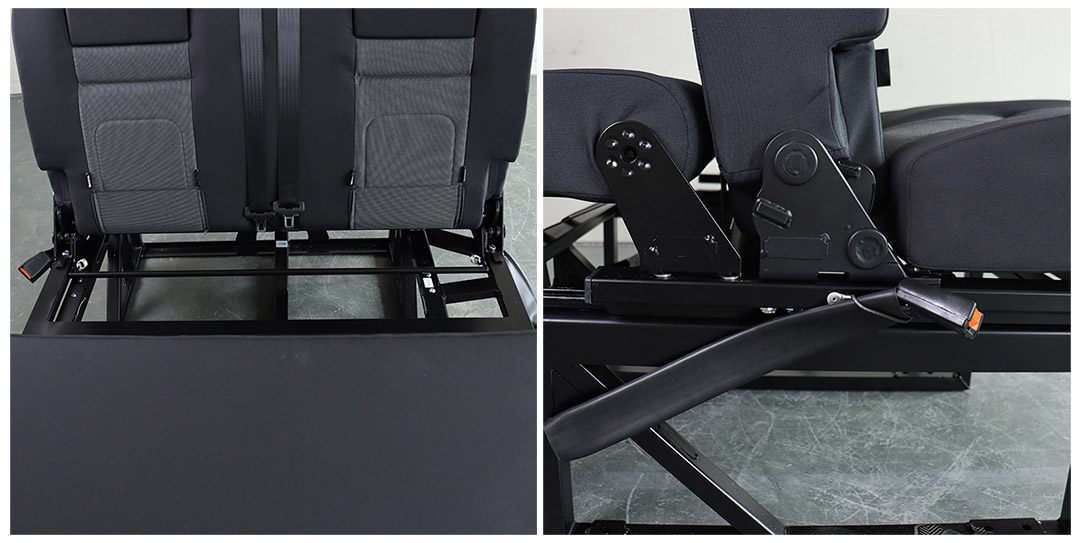

RIB seats detail

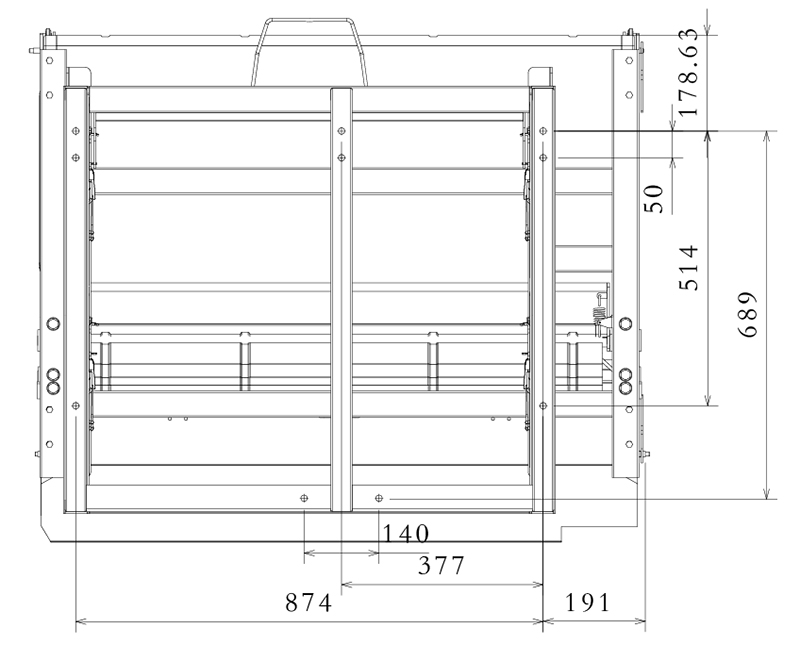

RIB bench Seat installation hole dimensions

 RIB seat detail



Optional function customization

Leather color

Leather material: PVC, PU, microfiber, genuine leather, Oxford cloth

Quilted embroidery pattern

Color matching leather

Personalized LOGO

Optional seat belt: no seat belt, three-point seat belt

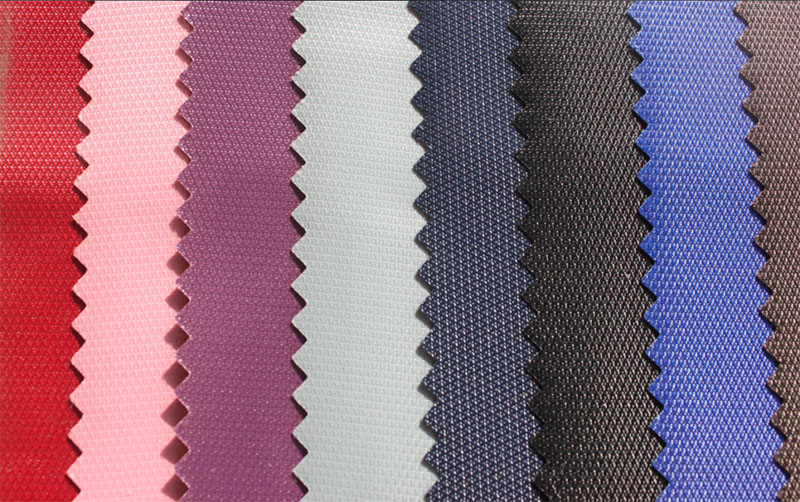

RIB Seat fabric

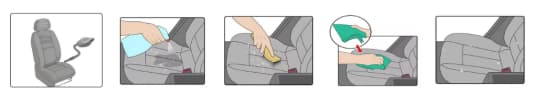

Cleaning and maintenance

1. First, clean the seat with a vacuum cleaner to remove dust and large particles of dirt to avoid scratching the leather when cleaning later;

2. Spray evenly at a distance of 15-20 cm from the cleaning area, wait for the foam to act on the cleaning surface for 30 seconds, and then gently scrub with a soft brush;

3. Use a clean dry towel and then wipe the seat surface repeatedly to reduce the residual foam cleaning agent;

Seat maintenance from Xiamen Van Seat

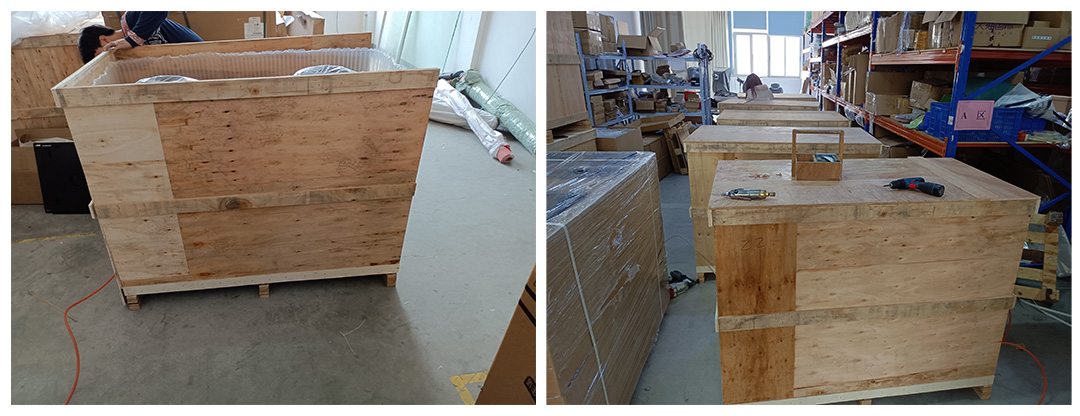

Shipping packaging

Packaging size: 1270*1200*1130MM (50*47.2*44.5in )

Box weight: 120KG (subject to the actual product)

Put a plastic dust bag on the seat and pack it in a plywood box. The plywood box will be shipped. Be careful to prevent water and drop during transportation.

 Xiamen Van Seat Packing
