The 3-Seat Rock n Roll Bed is a versatile RV seat that converts into a bed, maximizing space. Ideal for RVs and campervans, it offers daytime seating and nighttime sleeping for comfort on leisure or business trips.
|
Expanded size |
1850mmX1200mmX400mm(72.8’’X47.2’’X15.8’’） |
|
Folded size |
1126mmX1200mmX1099mm(44.3’’X47.2’’X43.2’’） |
|
Packing size |
1880mmX1270mmX430mm（74’’X50’’X17’’） |
|
Material |
Covering material: PVC Sponge material: PUR cold foaming Frame material: Q235 steel, plywood |
|
Product Net Weight |
100kg Actual weight is subject to the product |
|
Applicable models |
Vito, Multivan, Transit, Sprinter and other commercial vehicles, as well as various modified RVs and campers |
White Rock And Roll Beds for Campervan Conversion
3 Seat Rock n Roll Bed Description
The Rock and roll seats is a multifunctional rear seat that can be quickly converted into a bed according to the user's preference. This design is favored in many caravan and campervan conversions, mimicking the functionality of a sofa, turning into a bed at night, and seating during the day, maximizing space and practicality.
Application of 3 Seat Rock n Roll Bed
1. Within the RV, provide passengers with comfortable resting or sleeping areas as needed.
2. On leisure or business trips, in a campervan or business vehicle, the seat can be used as a regular seat during the day and easily expands into a bed at night.
Features of 3 Seat Rock n Roll Bed
1. Quick Conversion: Rock and roll seats quickly transform into a bed and backrest, offering ample storage space.
2. User-Friendly Operation: Simple design eliminates the complexity of assembling a bed, easy for everyone, including children and the elderly. Folding or unfolding takes seconds.
3. Spacious Under-Seat Storage: Rock and roll seats allow storage of batteries, inverters, water heaters, and other items under the seat cushion.
4. Safe and Reliable: Multi-level hinge support prevents pinching, with three compliant safety belts. The sturdy iron frame supports up to 200kg.
5. High-Quality Materials: Made from plywood, anti-sag middle layer, durable Nappa leather, and 80mm foam for comfort while riding or sleeping.
6. Modification Friendly: The 270mm frame height fits most car wheel arches. The design uses electrophoretic paint for a premium finish and adjustable dampers for seat movement.
7. Overall Size: Width range: 1100mm–1460mm; unfolded size: 1850mm–1980mm.
8. Comfortable Seating Surface: Rock and roll seats provide a flat, soft surface for maximum comfort.
Rock N Roll Beds Applicable Models
General style, such as: Vito, Multivan, Transit, Sprinter and other commercial vehicles, as well as various modified RVs, campers, etc.

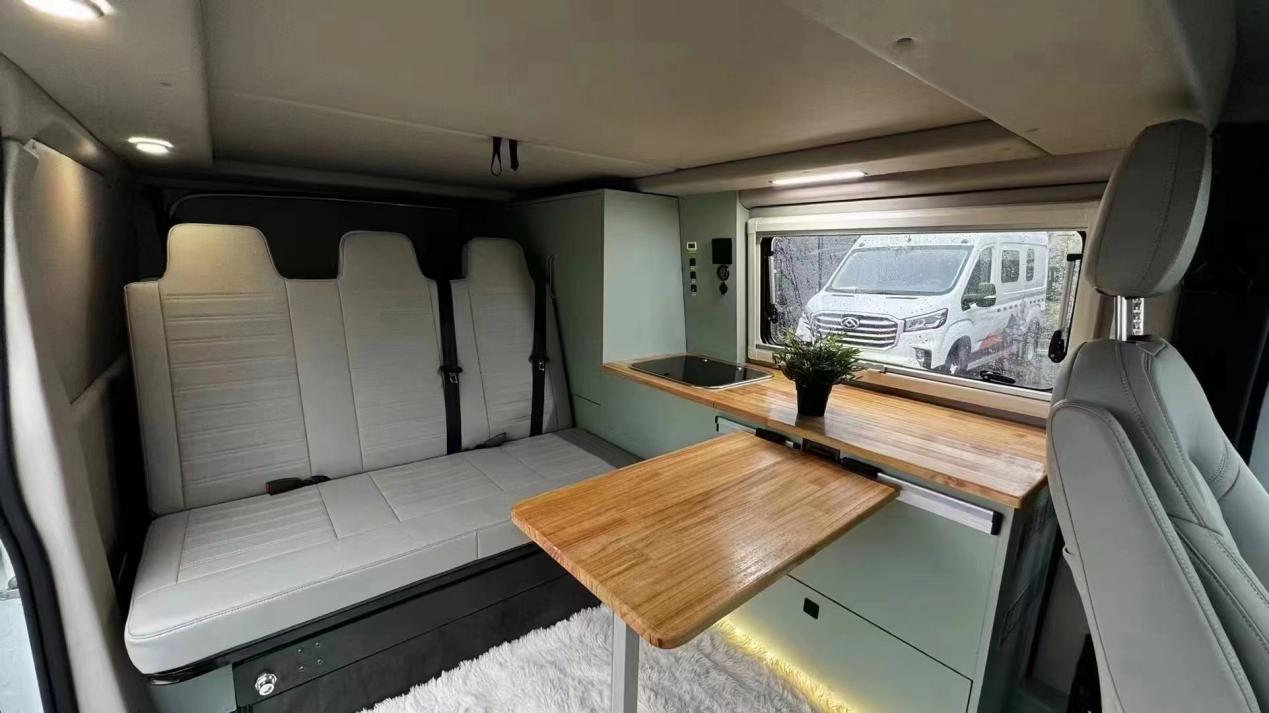

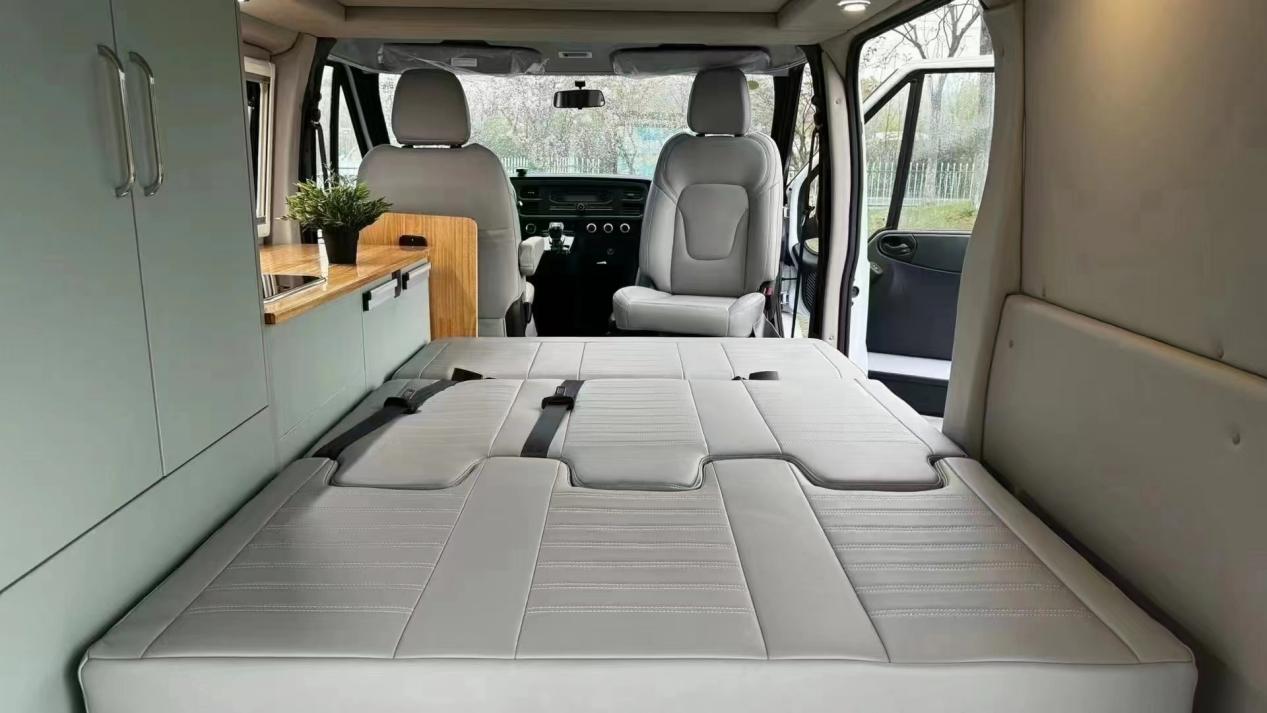

Installation Effect Diagram
How to Install a Rock and Roll Bed
Expand:To unlock the seat, simply press the button on the front. Then, pull the seat cushion until it lies flat.
Storage:To stow the seat, lift it slightly from the center. A pneumatic assist will help retract the seat and lock it into place. Alternatively, you can pull the safety strap to facilitate the storage process.
Slide:If the base has a front-to-back sliding function, press the adjustment lever on the base to move the seat forward or backward along the slide rail.
 |
 |
Rock And Roll Bed Installation Hole Dimensions
Rock And Roll Camper Beds Production Process
Rock and Roll Bed Optional Customization
Quilted pattern
Color-blocked leather
Personalized LOGO
Overall size is optional, width is optional 1100-1460MM; after unfolding, the assembly can be optional 1850-1980MM
Optional seat belt: no seat belt, three-point seat belt
Rock and Roll Camper Beds Cleaning and Maintenance
1. First, clean the seat with a vacuum cleaner to remove dust and large particles of dirt to avoid scratching the leather when cleaning later;
2. Spray evenly at a distance of 15-20 cm from the cleaning area, wait for the foam to act on the cleaning surface for 30 seconds, and then gently scrub with a soft brush;
3. Use a clean dry towel and then wipe the seat surface repeatedly to reduce the residual foam cleaning agent;
Rock Bed Conversion Shipping Packaging
Packaging size: 1880mmX1270mmX430mm
Box weight: 100KG (subject to the actual product)
Put a plastic dust bag on the seat, use polystyrene foam for protection at the front and back, and use carton packaging or wooden box as the outer packaging. Be careful to prevent water and drop during transportation.
